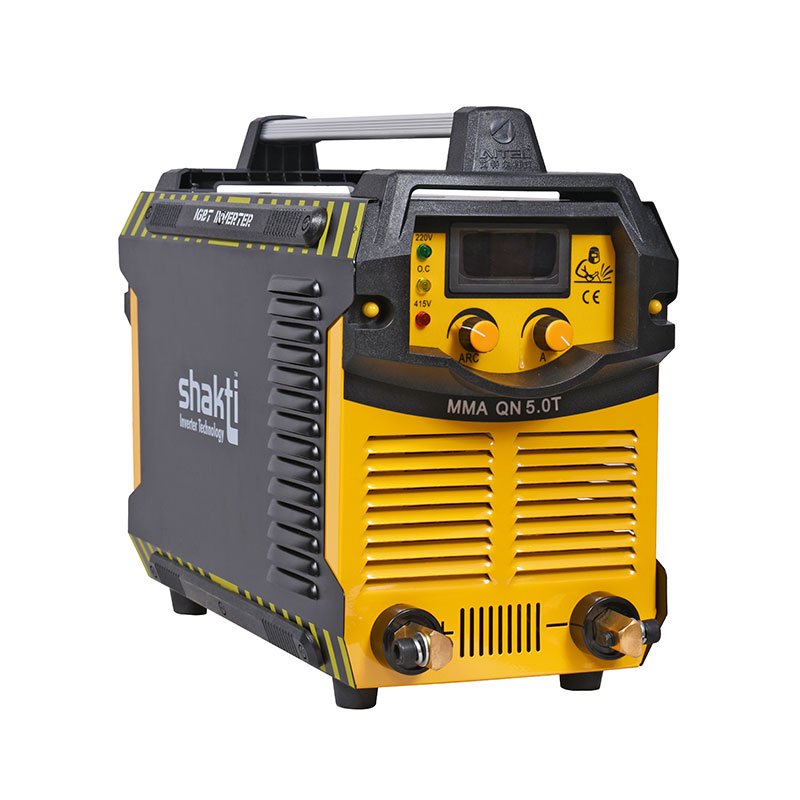

WORKABLE INPUT: AC 60 ~ 560V 100% Arc Start; Stable Arc, Better Welds Dedicated to weld 5.0mm rods
| Input Voltage: | 1ph:60~560V / 2ph:60~560V / 3ph: 380~560V |
| Input Power (KVA): | 7.80/14 |
| Max Output Current (A): | 200A @ 1ph/2ph / 310A @ 3ph |
| VRD (V): | 24V |
| Duty Cycle @ 40°C: | 60% |
| No Load Voltage (V): | 75/220V(input); 65/380V(input) |
| Hot Start: | Yes |
| Protection & Insulation: | IP 21 & F |
| Dimensions (mm) Approx: | 457x228x373 |
| Weight (kg): | 12 kg |
